100μm large-size flexible interdigital electrode PET capacitor array scientific research experiment sensor chip gold electrode
| 【Numbering】BK2021012704 | 【CAS】cas | ||
| 【Item No.】BK2021012704 | 【specification】 | ||
|
|||

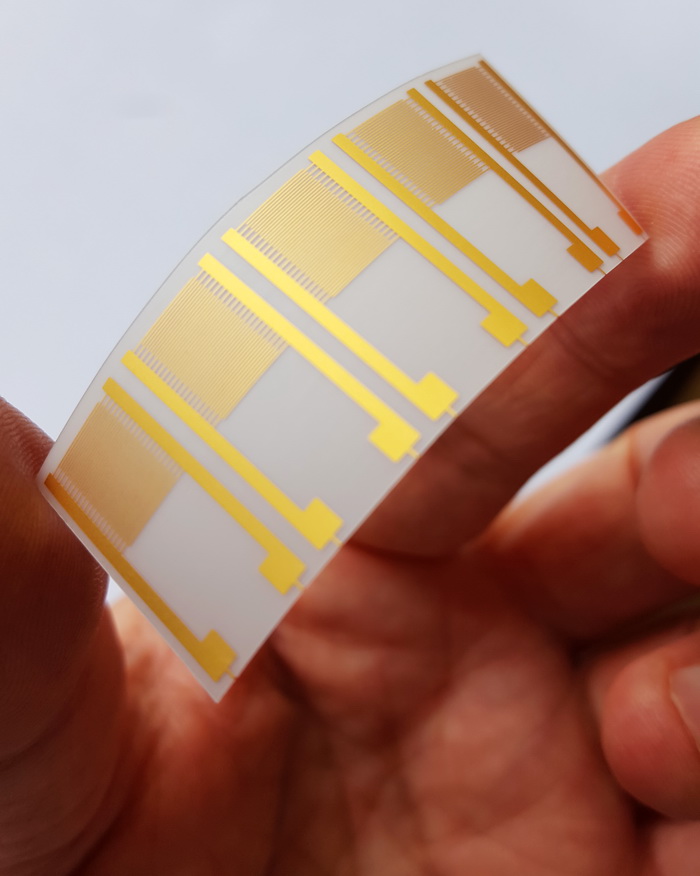

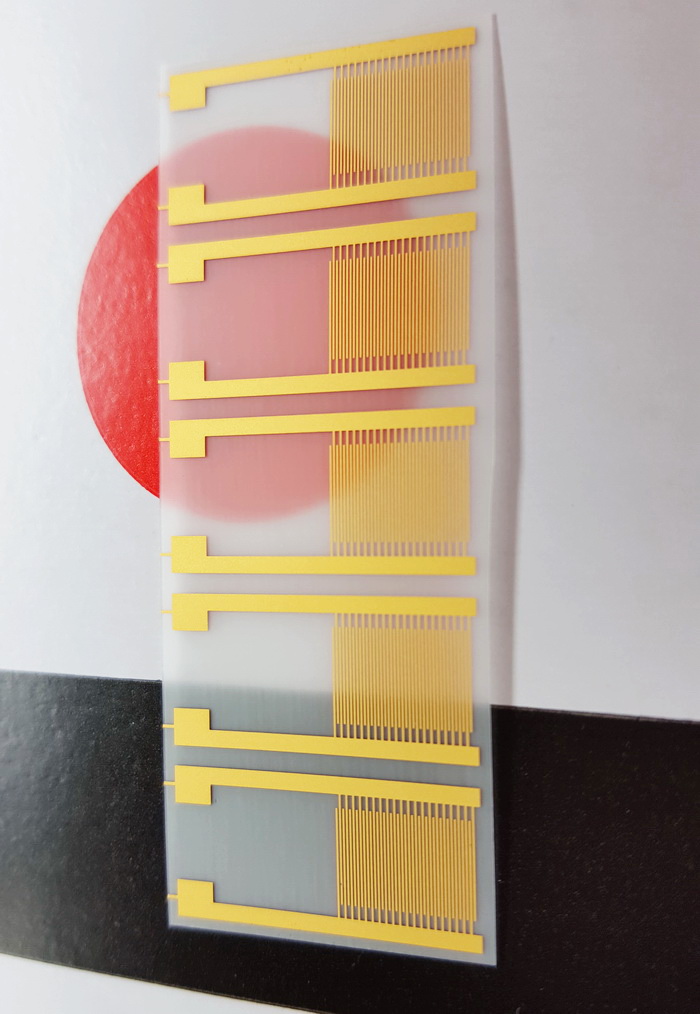

Easy to operate large-size flexible PET interdigital electrode biogas humidity sensor capacitance array
1. Electrode substrate: polyethylene terephthalate (PET), thickness 7oum, overall dimensions
20mm*10mm.

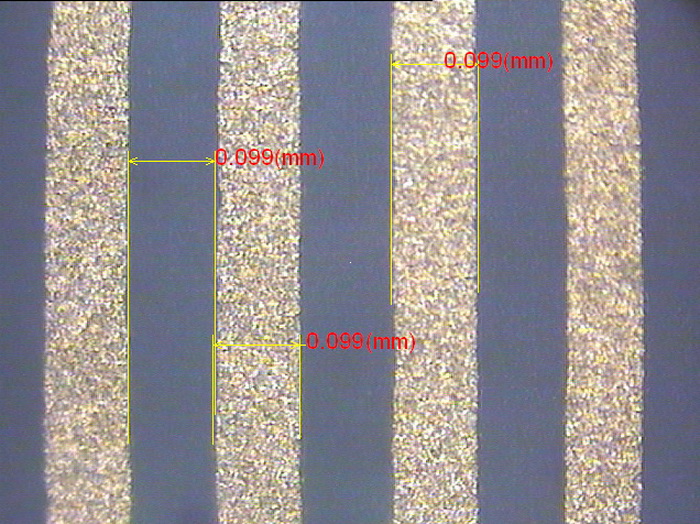

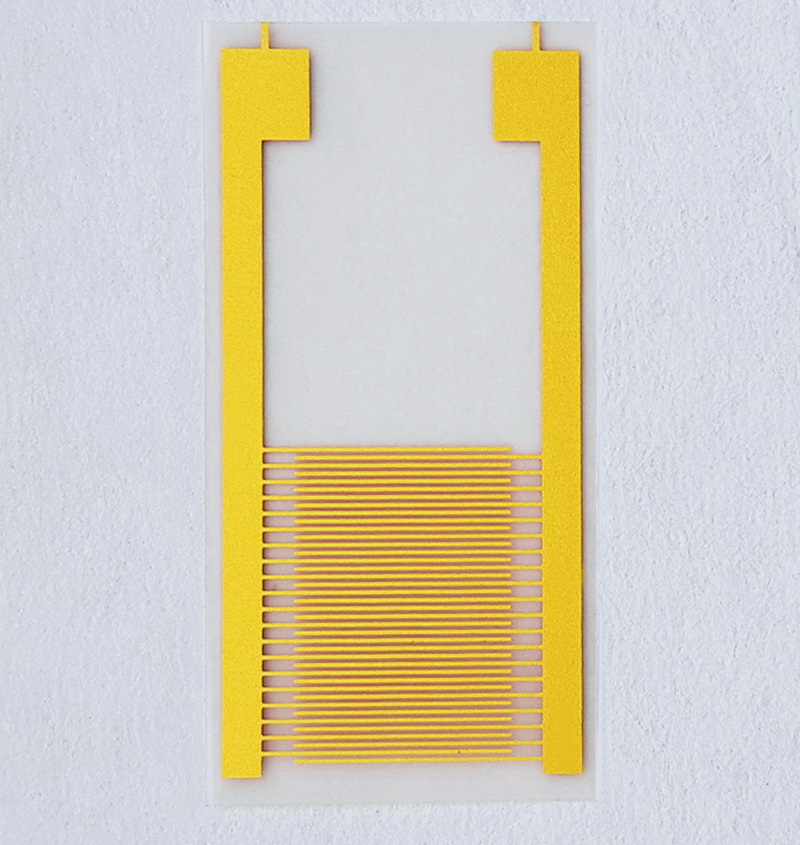

2. The line width is 100um, the line spacing is 100um, and the finger length is 6.3mm. Interdigital pairs: 20 pairs (40 fingers). 3. The metal layer structure is Cu/Ni/Au, and the thickness is 12um, 3um, and 1um respectively.
4. Electrode operating temperature range: -50℃～120℃.
5. Mainly used in various chemical, physical and medical sensors, with reliable performance and stable quality. 6. Large quantity and price favorably.
Message
1. Electrode substrate: polyethylene terephthalate (PET), thickness 7oum, overall dimensions
20mm*10mm.
2. The line width is 100um, the line spacing is 100um, and the finger length is 6.3mm. Interdigital pairs: 20 pairs (40 fingers). 3. The metal layer structure is Cu/Ni/Au, and the thickness is 12um, 3um, and 1um respectively.
4. Electrode operating temperature range: -50℃～120℃.
5. Mainly used in various chemical, physical and medical sensors, with reliable performance and stable quality. 6. Large quantity and price favorably.
We provide a variety of interdigital electrodes, including different shapes, different sizes, different line widths and distances, different substrates (alumina ceramics, PI/PET flexible materials, monocrystalline silicon), and different processes (thick film process, DPC process, MEMS process).
| Warm tips: Suzhou Beike nano products are only used for scientific research, not for human body,different batches of products have different specifications and performance |
