50μm flexible interdigital electrode capacitance array gas biological humidity sensor chip PI smart wear
| 【Numbering】BK2021012605 | 【CAS】cas | ||
| 【Item No.】BK2021012605 | 【specification】 | ||
|
|||

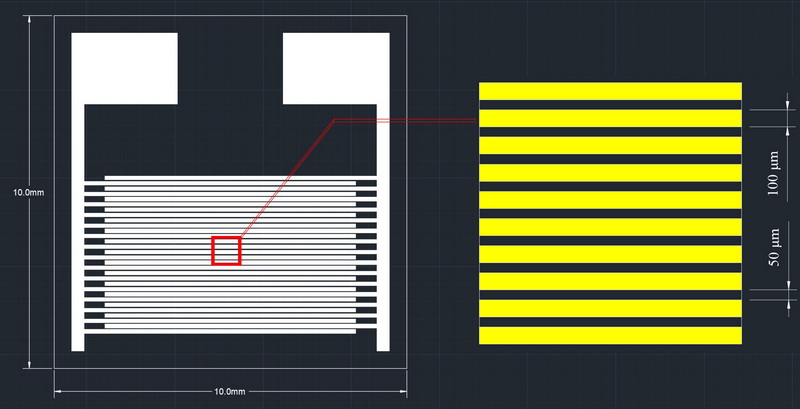

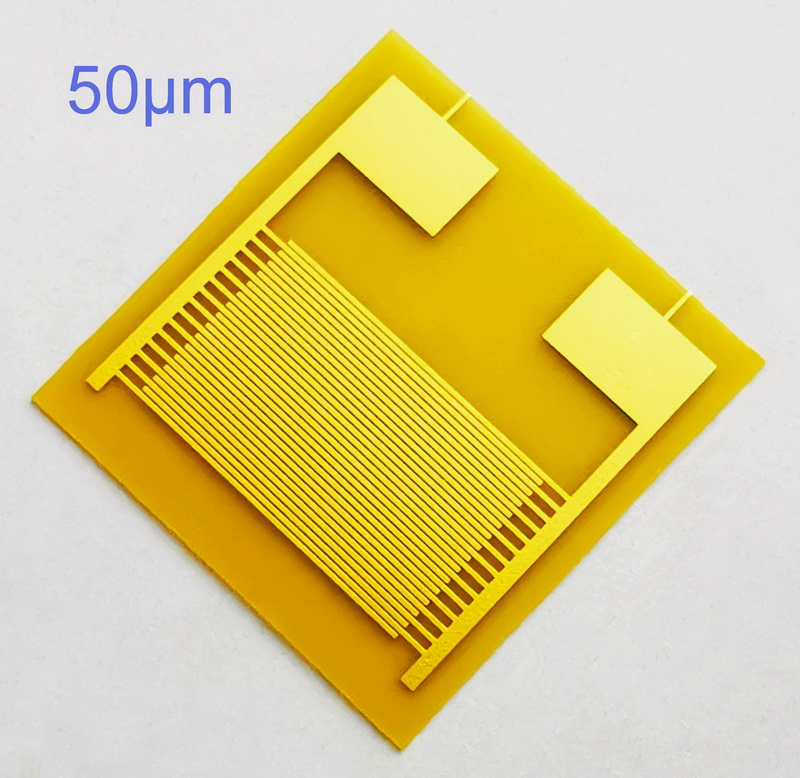

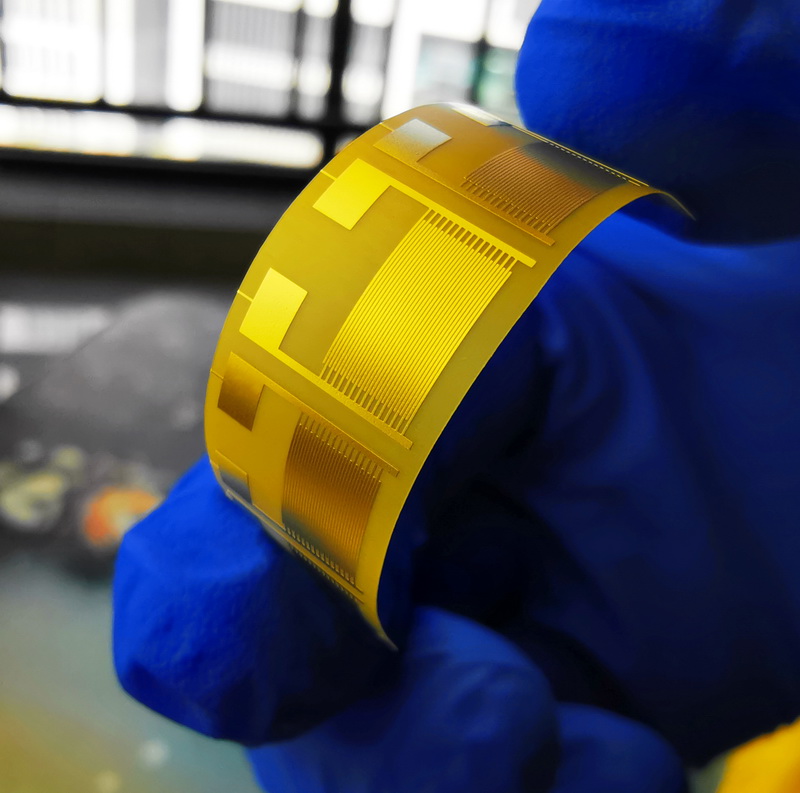

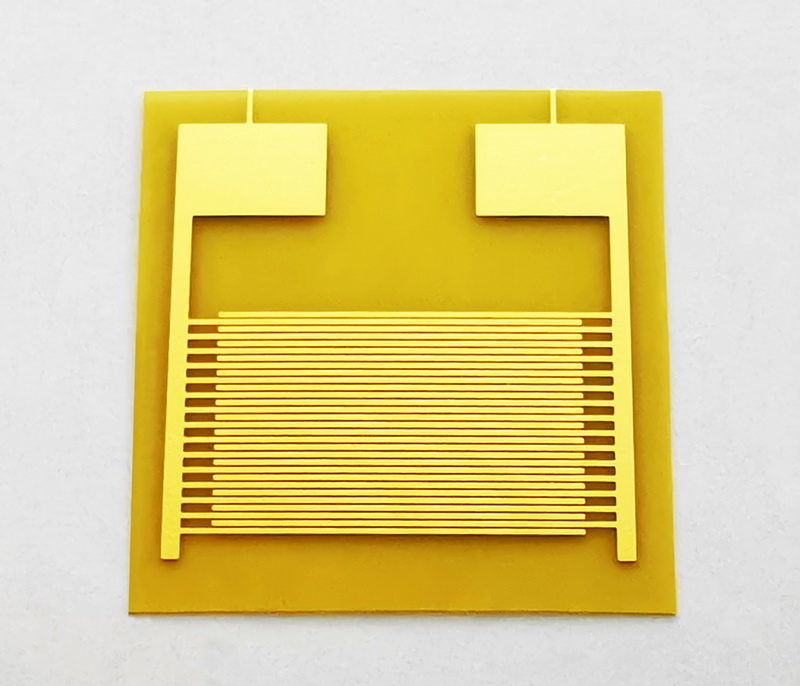

Flexible PI Interdigital Electrode IDE Medical Gas Biological Humidity Sensor Smart Wear 1. Electrode substrate: polyimide (PI), thickness 13 u m, dimensions 10mm*10mm. It has a reinforced backing and is easy to operate.
2. The line width is 100 um, the line spacing is 50 um, and the length is 7.7mm. Interdigital pairs: 15 pairs (30 fingers). 3. The metal layer structure is Cu/Ni/Au, and the thickness is 12um, 3um, and 1um respectively.
4. Electrode operating temperature range: -50℃～120℃.
5. Mainly used in various chemical, physical and medical sensors, with reliable performance and stable quality. 6. Large quantity and price favorably.
Message
2. The line width is 100 um, the line spacing is 50 um, and the length is 7.7mm. Interdigital pairs: 15 pairs (30 fingers). 3. The metal layer structure is Cu/Ni/Au, and the thickness is 12um, 3um, and 1um respectively.
4. Electrode operating temperature range: -50℃～120℃.
5. Mainly used in various chemical, physical and medical sensors, with reliable performance and stable quality. 6. Large quantity and price favorably.
We provide a variety of interdigital electrodes, including different shapes, different sizes, different line widths and distances, different substrates (alumina ceramics, PI/PET flexible materials, monocrystalline silicon), and different processes (thick film process, DPC process, MEMS process).
| Warm tips: Suzhou Beike nano products are only used for scientific research, not for human body,different batches of products have different specifications and performance |
